- Specification

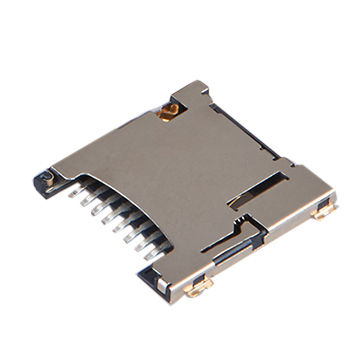

Micro-TF-Card-Socket-SIM-Card-Connector-with-SMD-Type
产品型号:Card Sockets
所属类别:Card Sockets系列
额定电流(Current rating):0.5AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.1Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):10V AC/DC
工作温度(Operation Temperature):-25℃~+85℃
材质(Material):
接触区域(Contact):Copper Alloy
电镀(Plating):Au plating on contact area,Sn Plating on solder area
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
金属壳(Shell):Stainless Pickling
