FP050WTBA13NPJFSN

产品型号:FP050WTBA13NPJFSN
所属类别:FFC/FPC系列 / 0.5mm pitch

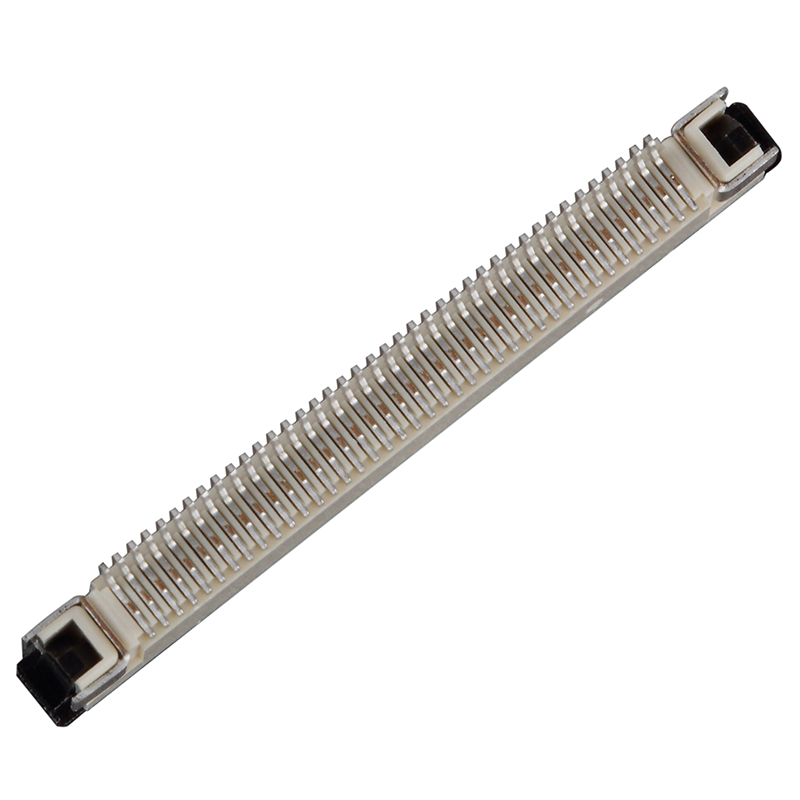

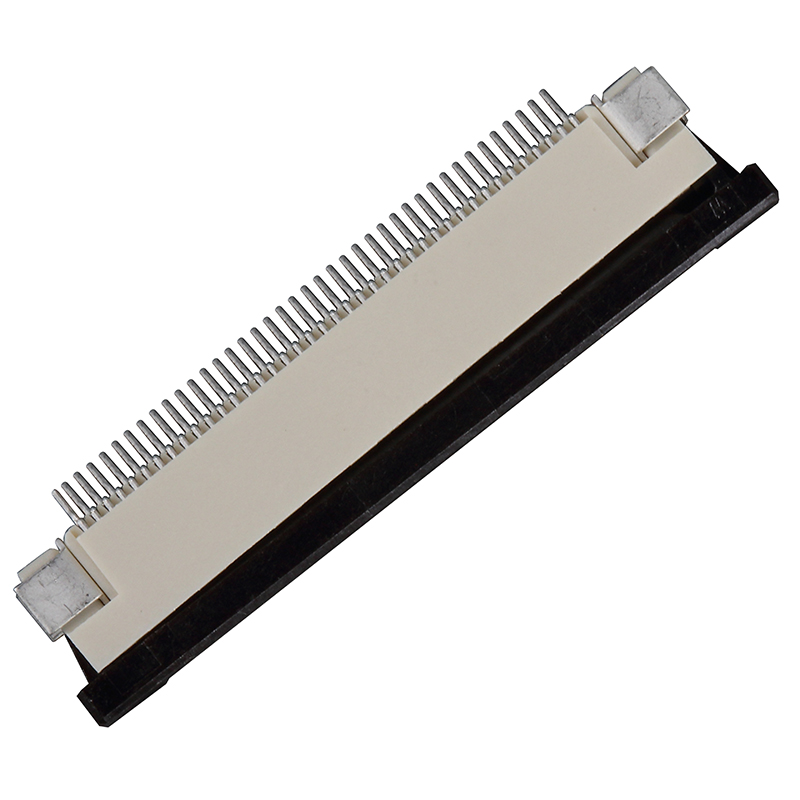

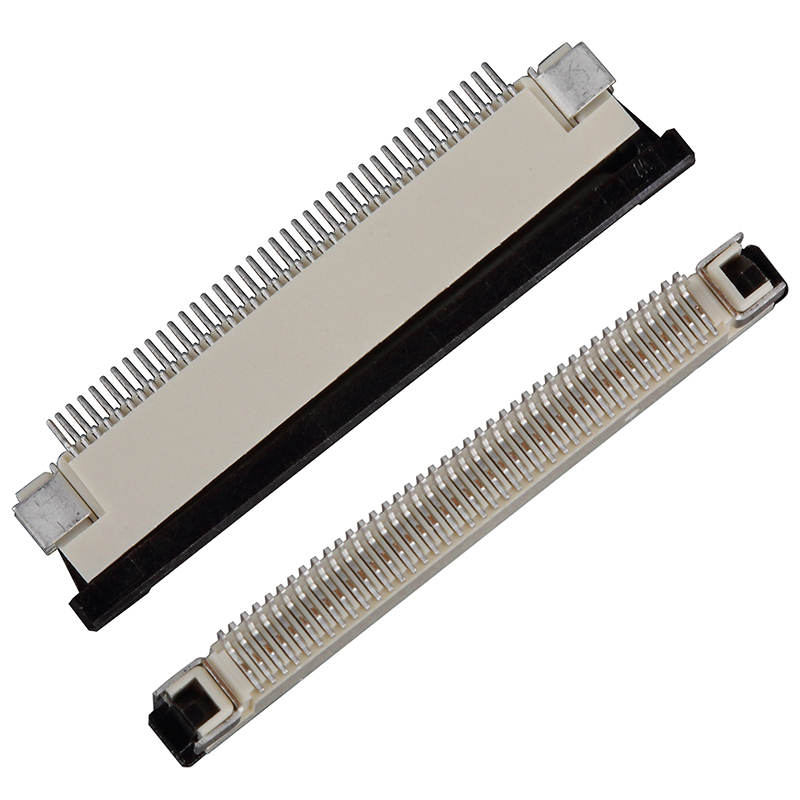

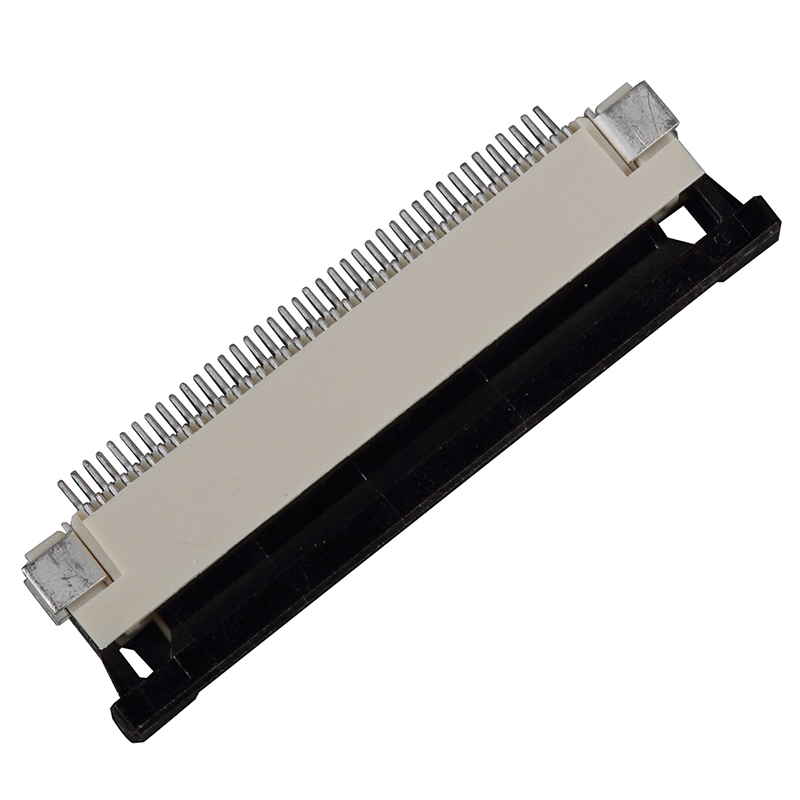

产品名称:Pitch 0.5mm  FPC 连接器

0.5-13 Series 0.5mm FPC CONN .ZIF R/A ,SMT,Slide,H=2.45, Bottom$Upper Contact

间距(Pitch):0.5mm
线数(Poles):42
额定电流(Current rating):1AMP
绝缘电阻(Insulation resistance):≥500MΩ
接触电阻(Contact resistance):≤0.03Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):125V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):C5191 磷铜
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
