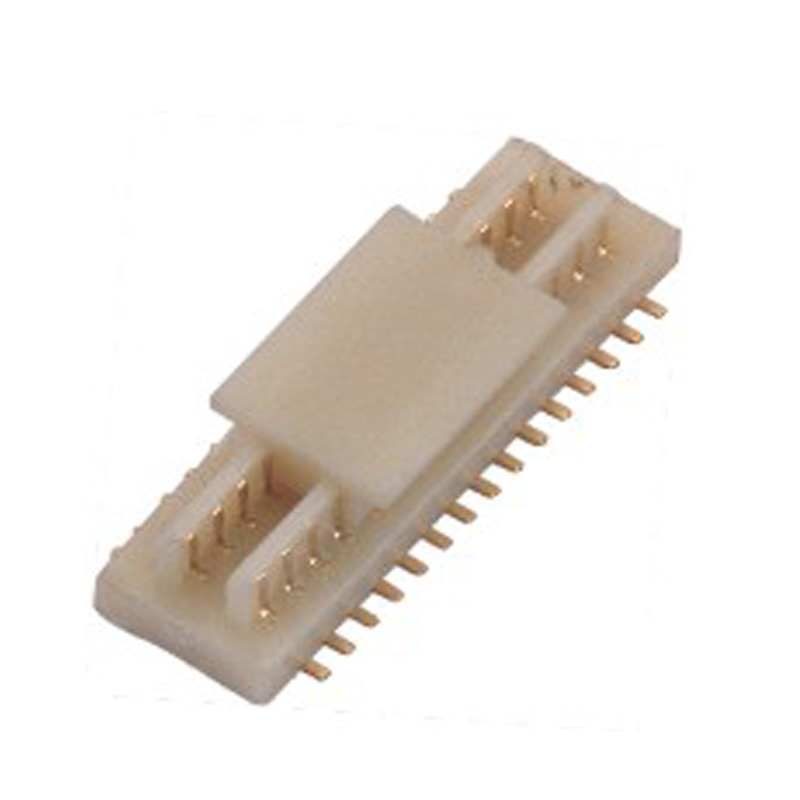

0.8mm Board to Board Male H=1.01.52.03.04.0 SMT Type

Model Number:BTB-0.5-NP
Type:ADAPTER
Application:Board to board
Gender:Female and male
Pins:16p, 14P, 22P, 26P, 64P, 12p, 28P, 30P,
 36P, 10P, 24P, 32P, 50P, 34P, 40P, 18P, 20P
Connector type:SMT
Rated current:0.5A
Rated voltage:50V
Withstand Voltage:500V
Contact resistance:≤90 mΩ
Working Temperature:-25℃ ~ +85℃
Insulation resistance:800mΩ
Color:Black/White
Main body(materials):LCP, 94V-0
Contact(materials):Phosphor Bronze,GOLD over Nickel
