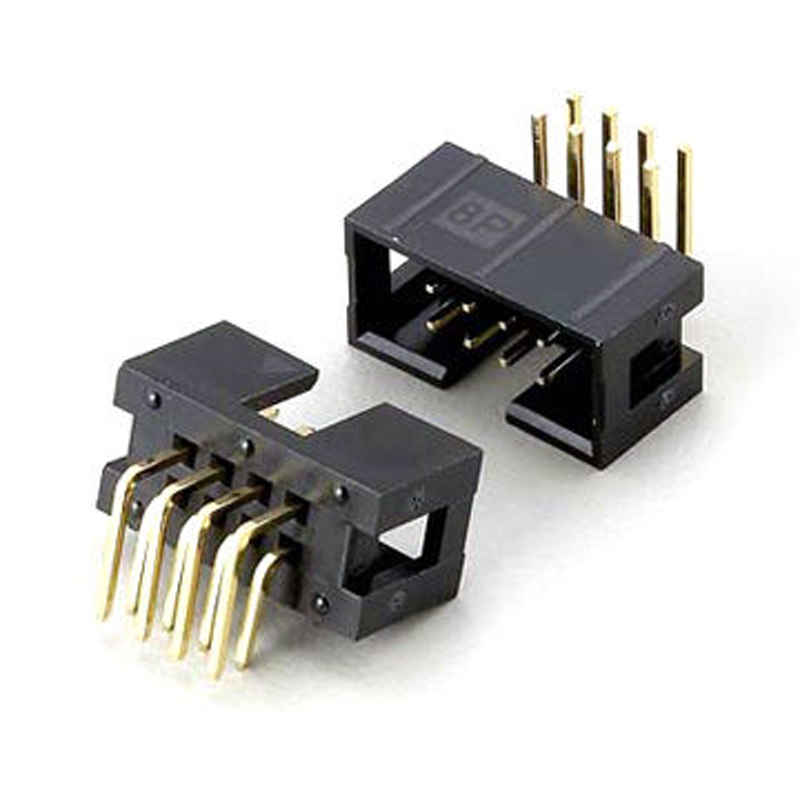

2.54mm-Box-Header-in-Right-Angle-Type-and-Dual-Row-with-500V

产品型号:Box&Ejector Header
所属类别:Box&Ejector Header系列 / 2.54mm pitch
产品名称:Pitch 2.54mm  Female headers连接器

2.54mm-Box-Header-in-Right-Angle-Type-and-Dual-Row-with-500V

间距(Pitch):2.54mm
线数(Poles):20
额定电流(Current rating):3.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):1000V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):Copper Alloy
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
