2.0-Box-Header,0.5SQ,H=5.7,Dual Row,Straight SMT_深圳市新盛连电子有限公司

Products

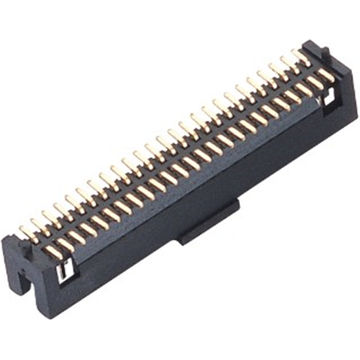

2.0-Box-Header,0.5SQ,H=5.7,Dual Row,Straight SMT

产品型号:Box&Ejector Header
所属类别:Box&Ejector Header系列 / 2.0mm pitch
产品名称:Pitch 2.0mm  Female headers连接器

2.0-Box-Header,0.5SQ,H=5.7,Dual Row,Straight SMT

间距(Pitch):2.0mm
线数(Poles):60
额定电流(Current rating):3.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):1000V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):Copper Alloy
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)

Send Inquiry

  • Specification
