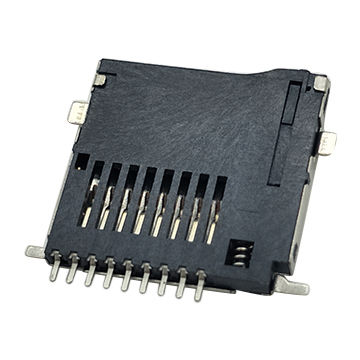

TF-Card-Mid-Mount-0.9mm-Connector (3)

产品型号:Card Sockets

所属类别:Card Sockets系列

额定电流(Current rating):0.5AMP

绝缘电阻(Insulation resistance):1000MΩ

接触电阻(Contact resistance):≤0.1Ω

耐电压(Withstanding Voltage):500V,AC/Minute

额定电压(Voltage rating):10V AC/DC

工作温度(Operation Temperature):-25℃~+85℃



材质(Material):

接触区域(Contact):Copper Alloy

电镀(Plating):Au plating on contact area,Sn Plating on solder area

塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)

金属壳(Shell):Stainless Pickling

Send Inquiry
