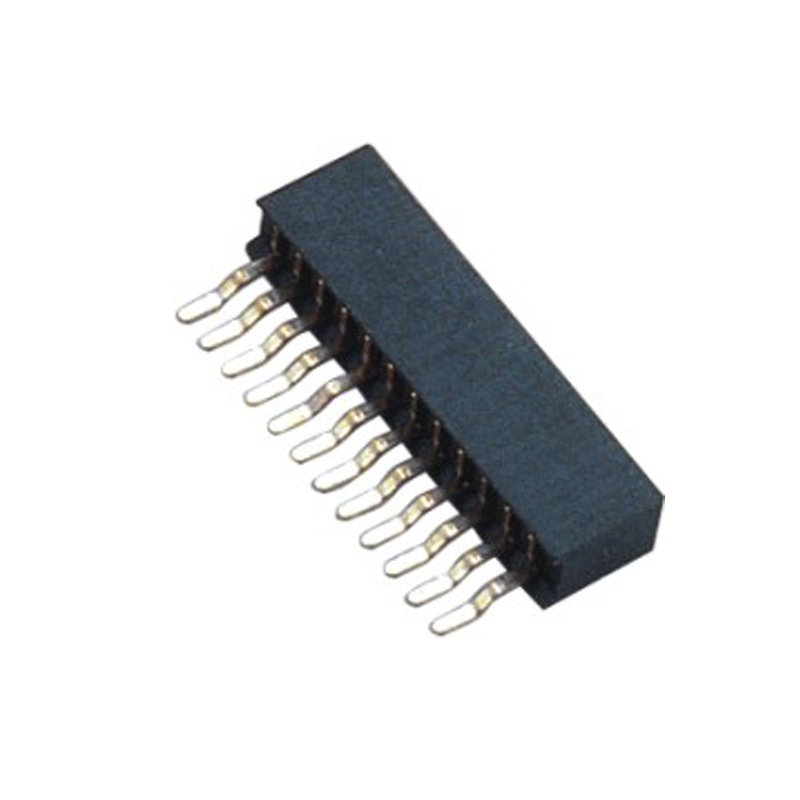

1.0mm Female Header H=3.7 Single Row Right Angle&SMT Type

产品型号:Female headers
所属类别:Female headers系列 / 1.0mm pitch
产品名称:Pitch 1.0mm  Female headers连接器

1.0mm Female Header H=3.7 Single Row Right Angle&SMT Type

间距(Pitch):1.0mm
线数(Poles):10
额定电流(Current rating):1.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):Copper Alloy
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
