1.27 Series 1.27mm,0.4SQ,PIN header,H=1.27,Singlel ROW,Stra

产品型号:Pin headers
所属类别:Pin headers系列 / 1.27mm pitch
产品名称:Pitch 1.27mm  Pin headers连接器

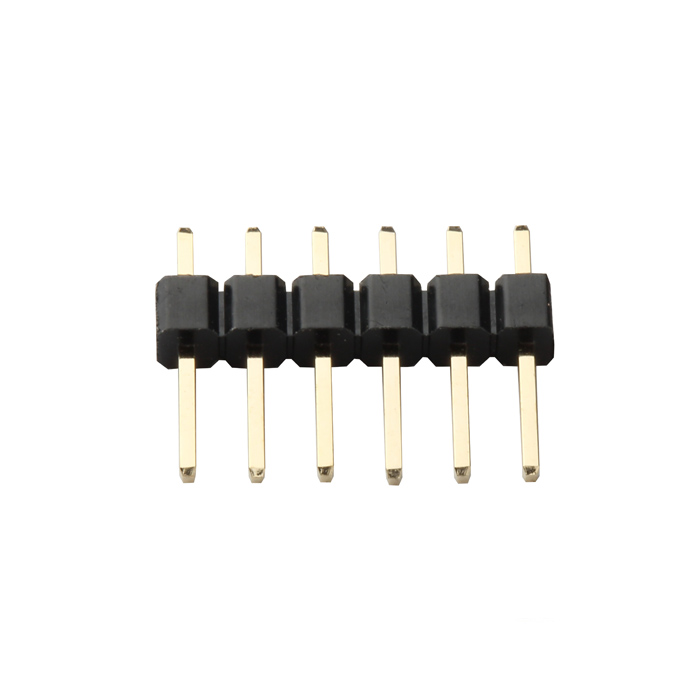

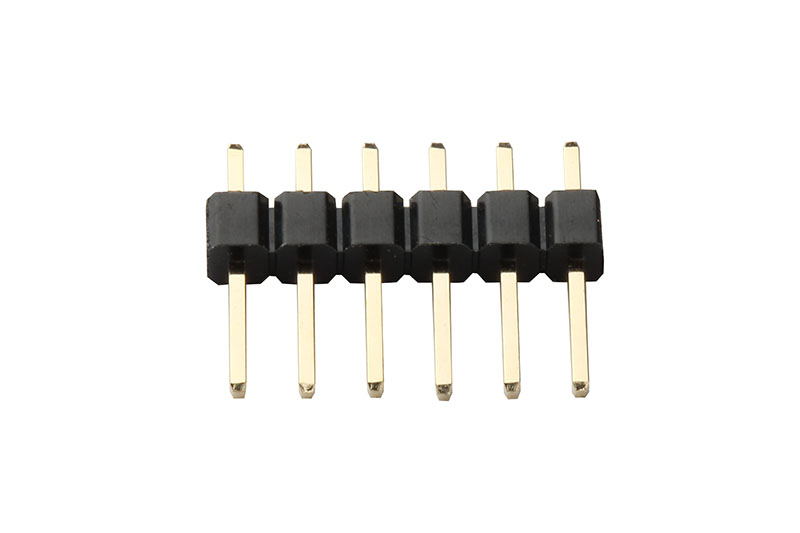

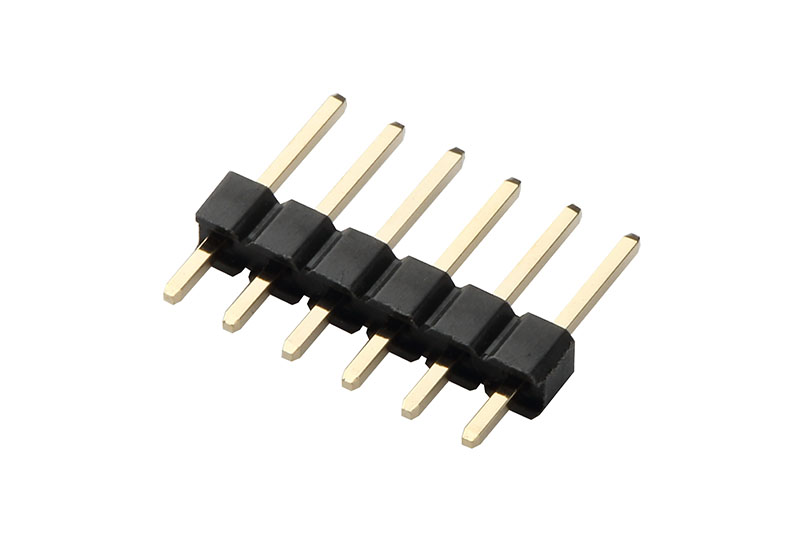

1.27 Series  1.27mm,0.4SQ,PIN header,H=1.27,Singlel ROW,Straight,DIP

间距(Pitch):1.27mm
线数(Poles):6
额定电流(Current rating):1.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):Copper Alloy

电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
