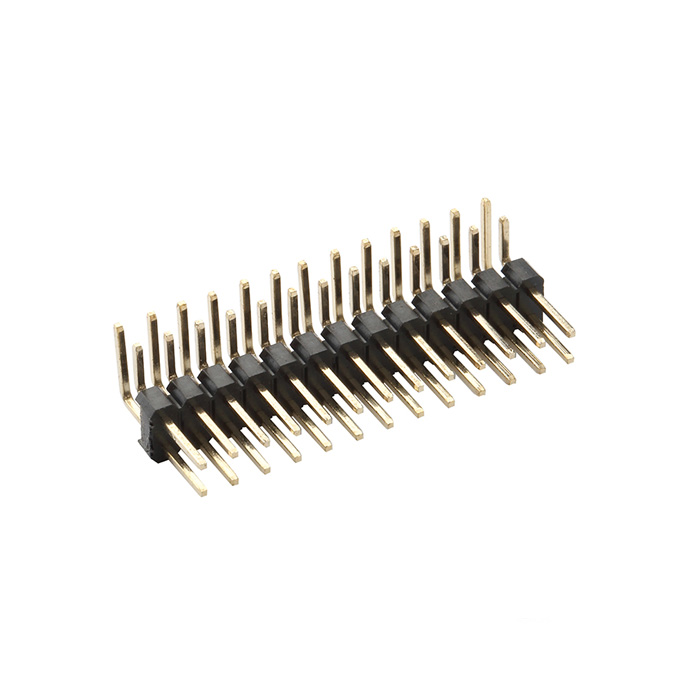

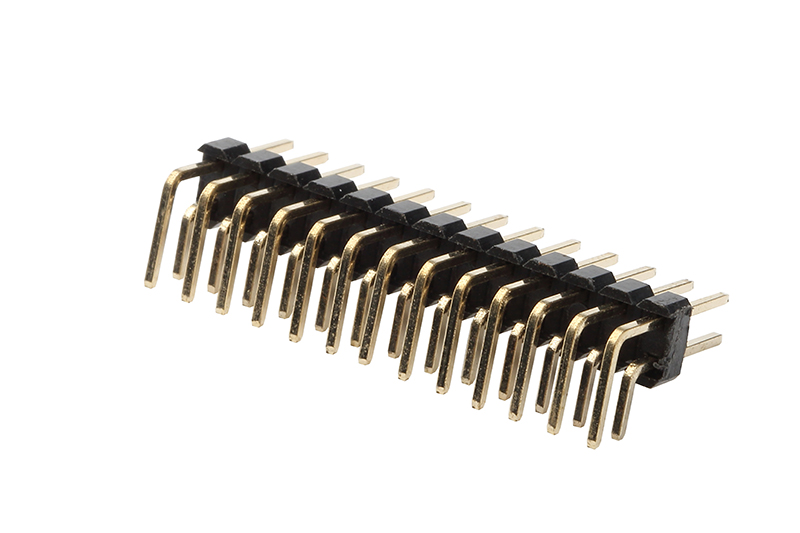

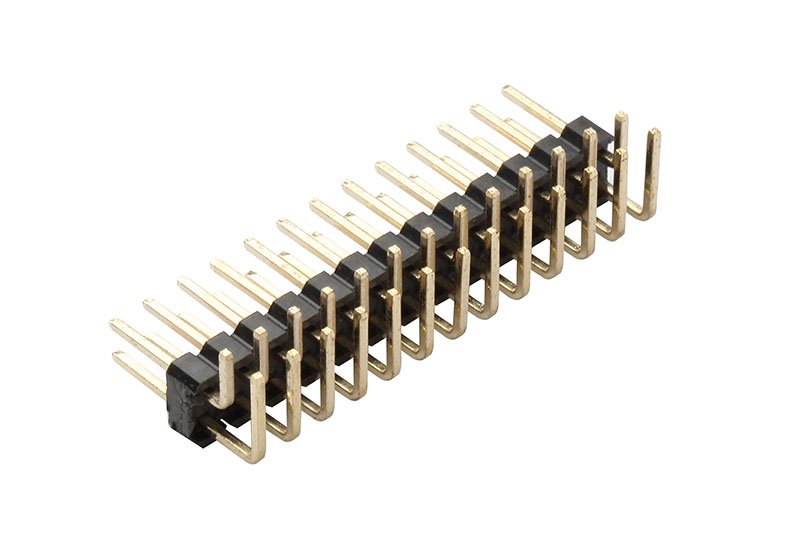

2.54 Series 2.54mm,0.4SQ,PIN header,H=2.54,Dual ROW,R/A,DIP

产品型号:Pin headers
所属类别:Pin headers系列 / 2.54mm pitch
产品名称:Pitch 2.54mm  Pin headers连接器

2.54 Series  2.54mm,0.4SQ,PIN header,H=2.54,Dual ROW,R/A,DIP

间距(Pitch):2.54mm
线数(Poles):30
额定电流(Current rating):3.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):1000V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):
Copper Alloy

电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
