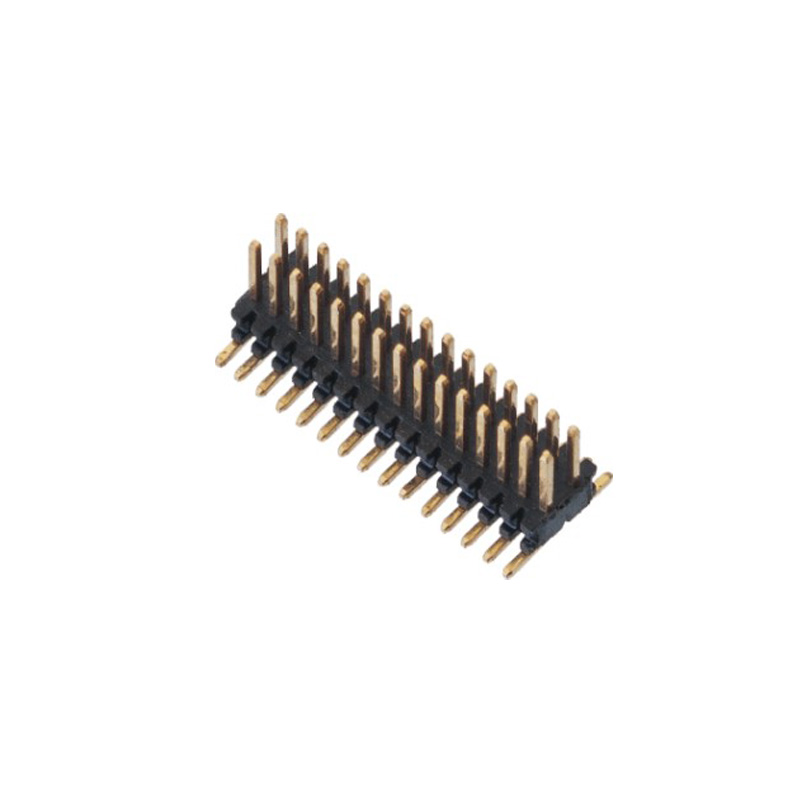

0.8mm Pin Header H=1.4 Double Row SMT Type

产品型号:Pin headers
所属类别:Pin headers系列 / 0.8mm pitch
产品名称:Pitch 0.8mm  Pin headers连接器

0.8 Series  0.8mm,0.4SQ,PIN header,H=1.4,Dual ROW,Straight,DIP

间距(Pitch):0.8mm
线数(Poles):6
额定电流(Current rating):1.0AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.02Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):Copper Alloy

电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
