WF125LTDB08NPJESN

产品型号:WF125LTDB08NPJESN
所属类别:Wire to board系列 / 1.25mm pitch
产品名称:Pitch 1.25mm  Wire to board 连接器

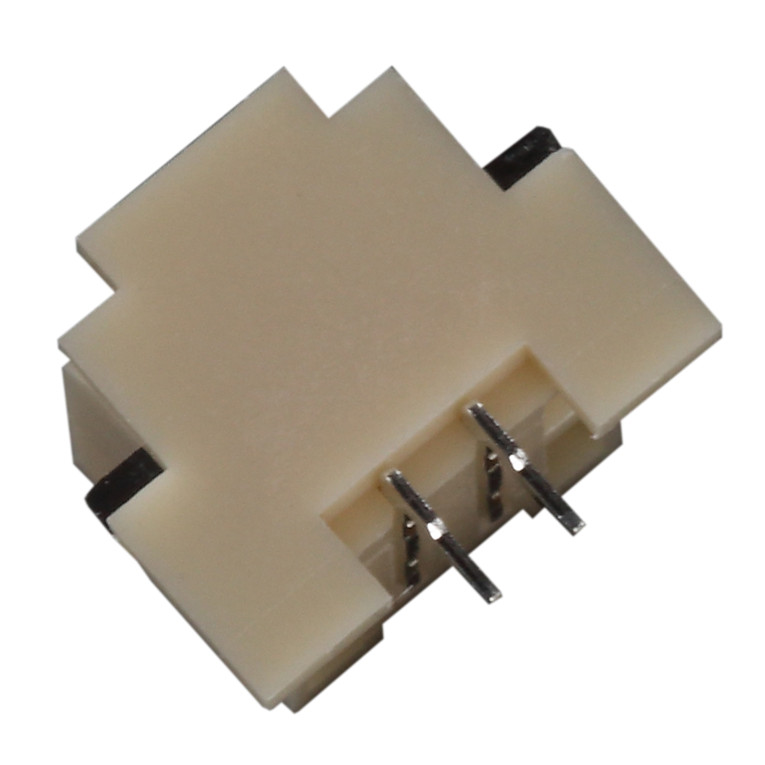

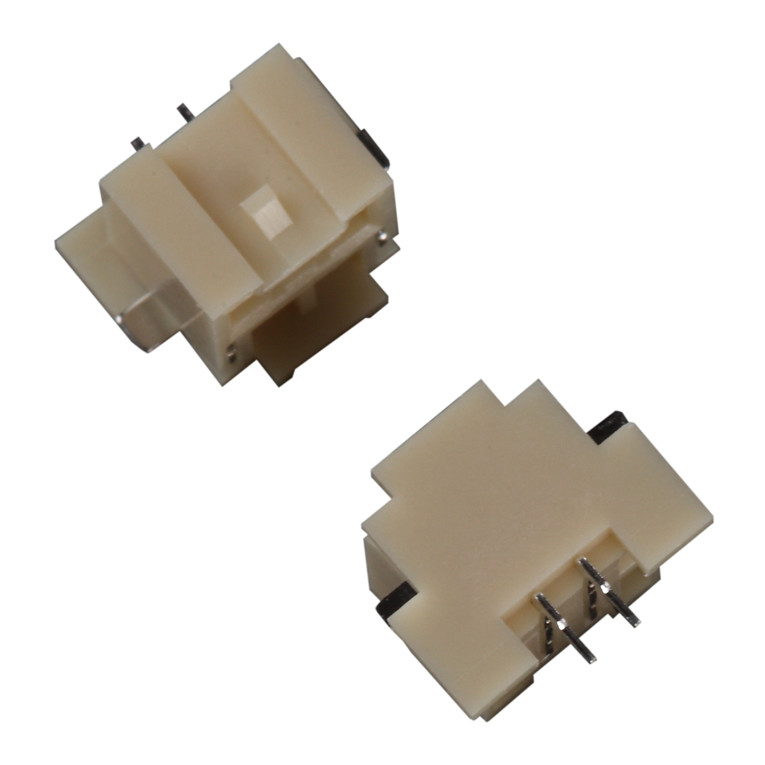

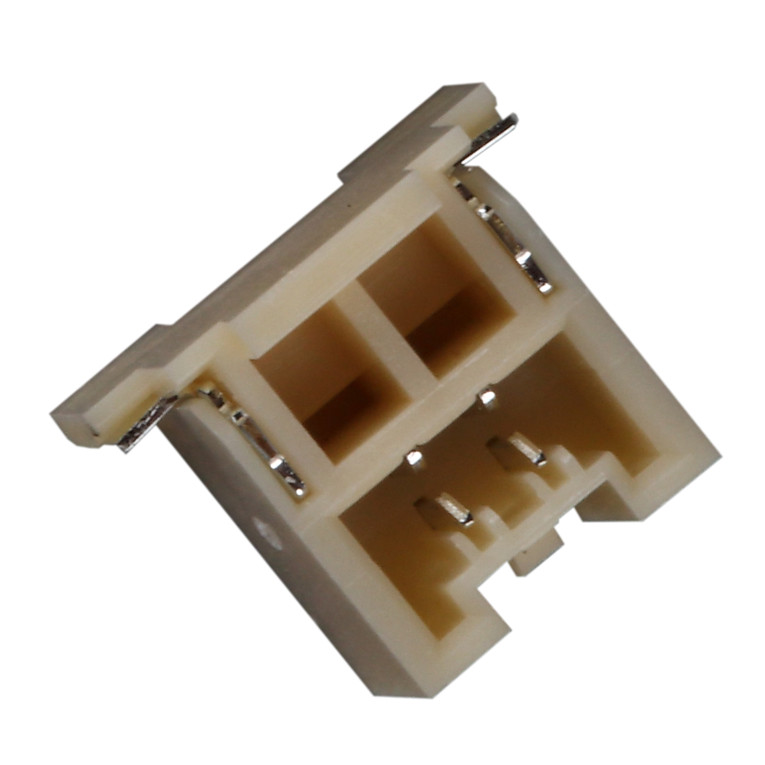

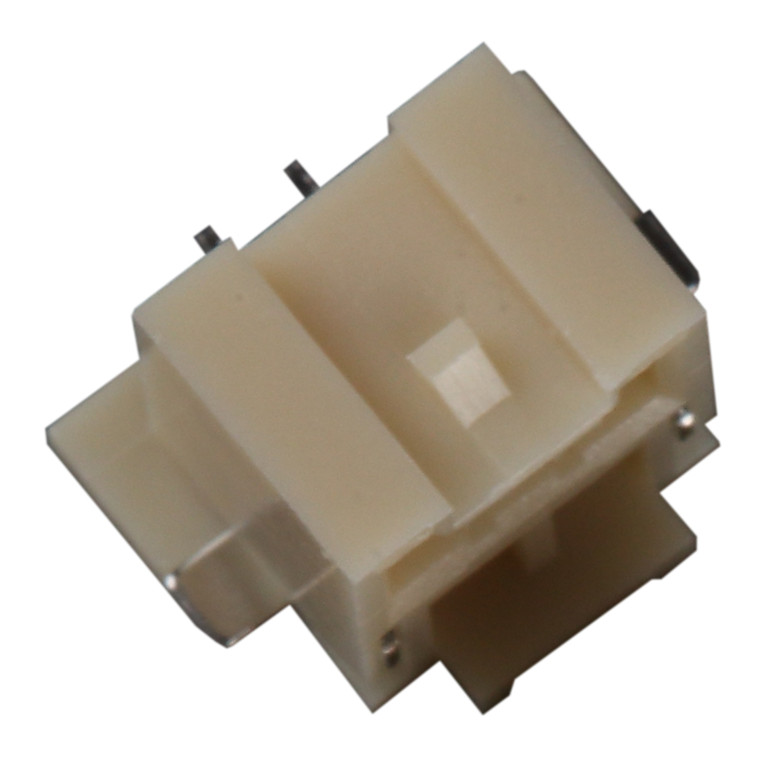

1.25T Series  1.25mm WTB CONN,Straight,SMT,With Lock

间距(Pitch):1.25mm
线数(Poles):6
额定电流(Current rating):1AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance):≤0.03Ω
耐电压(Withstanding Voltage):1000V,AC/Minute
额定电压(Voltage rating):200V AC/DC
工作温度(Operation Temperature):-25℃~+85℃

材质(Material):
接触区域(Contact):C5191 磷铜
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
